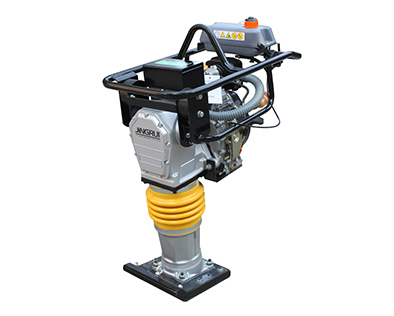

HCR100柴油沖擊夯
HCR100 Gasoline tamping rammer
配備柴油發動機,彈跳穩,沖擊力量大,并且加裝二次空濾系統,使得發動機更加能夠應對惡劣的工作環境。
Equpped with diesel engine, stable bounce, strong impact force; adding secondary air fltation system to improve the engine cope the severe environment.
項目Item:參數Parameter
操作質量Weight:90Kg
輸出功率Output power:5.5hp/6. 5HP
夯板尺寸Plate size:275 x 330mm
行走速度Advancing speed:10-15米m/分min
油箱容積Volume of fuel tank:2.8L
跳起高度Leap height:45- 65mm
沖擊能量Impact energy:80N.m
沖擊次數Impact frequency:400- 600次times/分min
燃油標號Lubricant oil:90#以上
外形尺寸Packing size:710 x 430 x 1050mm
